What Makes the Right Bus Bar Connector Critical for Solar Battery Storage Systems?

In solar-plus-storage projects, the inverter gets obsessive attention. The battery cells get obsessive attention. The racking system, the BMS firmware, the string monitoring — all of it gets engineered to a fine edge. And then the bus bar connector sitting between the battery module terminals and the DC combiner gets selected by whoever can find the cheapest unit that matches the ampere rating on the spec sheet.

That decision pattern has a measurable cost. At ZHERUTONG, we've reviewed failure reports from over 60 field installations across Southeast Asia and Europe over the past three years. Connector-related faults — loose joints, oxidation-driven resistance rise, and undersized cross-sections — accounted for 34% of system downtime events in battery storage projects under 1 MWh. Not inverter faults. Not cell degradation. Connector faults. This article breaks down what engineers and procurement specialists actually need to evaluate before specifying a bus bar connector for high-current solar storage applications.

What Exactly Does a Bus Bar Connector Do in a Storage System?

A bus bar connector is the mechanical and electrical interface that joins individual busbar segments or connects a busbar to a terminal block, battery cell, or inverter input — and in high-current DC systems, its contact resistance and clamping integrity directly determine whether the system runs efficiently or overheats.

This is worth separating clearly from what a terminal block or a cable lug does. A terminal block distributes multiple branch circuits from a single node. A cable lug transitions from flexible cable to a bolted stud. A bus bar connector, by contrast, creates a rigid or semi-rigid structural joint between two copper or aluminum conductor bodies — and in that joint, the electrical and mechanical performance are inseparable.

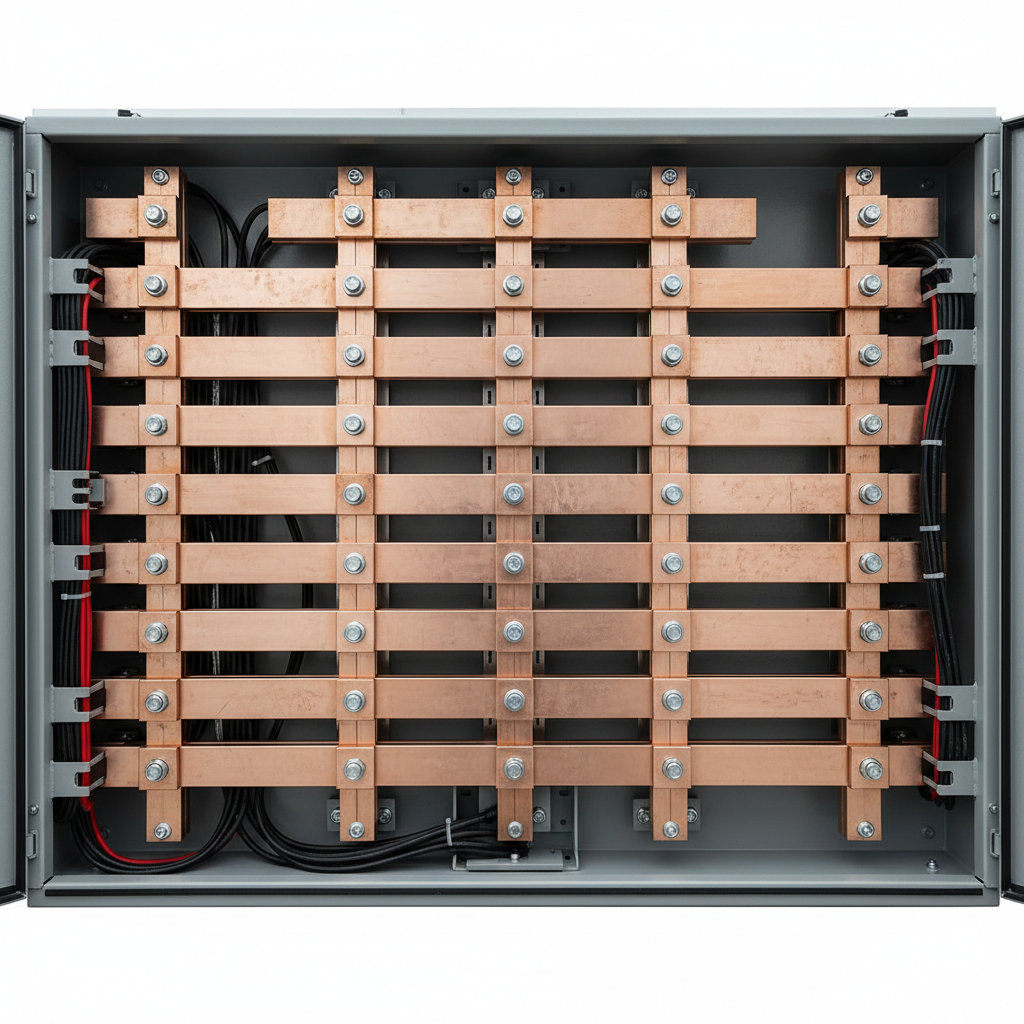

In a lithium battery storage cabinet running at 48V/200Ah rack configuration, bus bar connectors link individual cell groups to the main positive and negative busbars. Continuous current through those paths can exceed 300A. At that level, contact resistance as low as 0.05 mΩ matters — because I²R losses compound across every joint in series, and a storage system typically has eight to sixteen of those joints in a single battery string.

Three functional demands are specific to storage that don't apply the same way in, say, commercial switchgear. First, vibration tolerance: battery racks on floating foundations, mobile platforms, or containers near auxiliary generators experience continuous mechanical stress that gradually loosens bolted interfaces. Second, thermal cycling tolerance: charge and discharge cycles create ±30°C swings at the joint face, which causes micro-movement and accelerates fretting corrosion. Third, chemical environment: off-gassing in enclosed battery rooms — even with lithium chemistries — creates a mildly corrosive atmosphere that attacks unplated copper surfaces over time.

It's also worth noting what a solar storage bus bar connector is not. Products like TE Connectivity's CROWN CLIP or Molex's PowerPlane are engineered for server rack and data center power distribution — 12V or 48V bus architectures with fundamentally different thermal profiles and current densities. Specifying data-center-class connectors in a 1000V DC outdoor BESS enclosure is not a conservative choice. It's the wrong product category entirely.

Which Bus Bar Connector Types Are Used in Solar and Storage Applications?

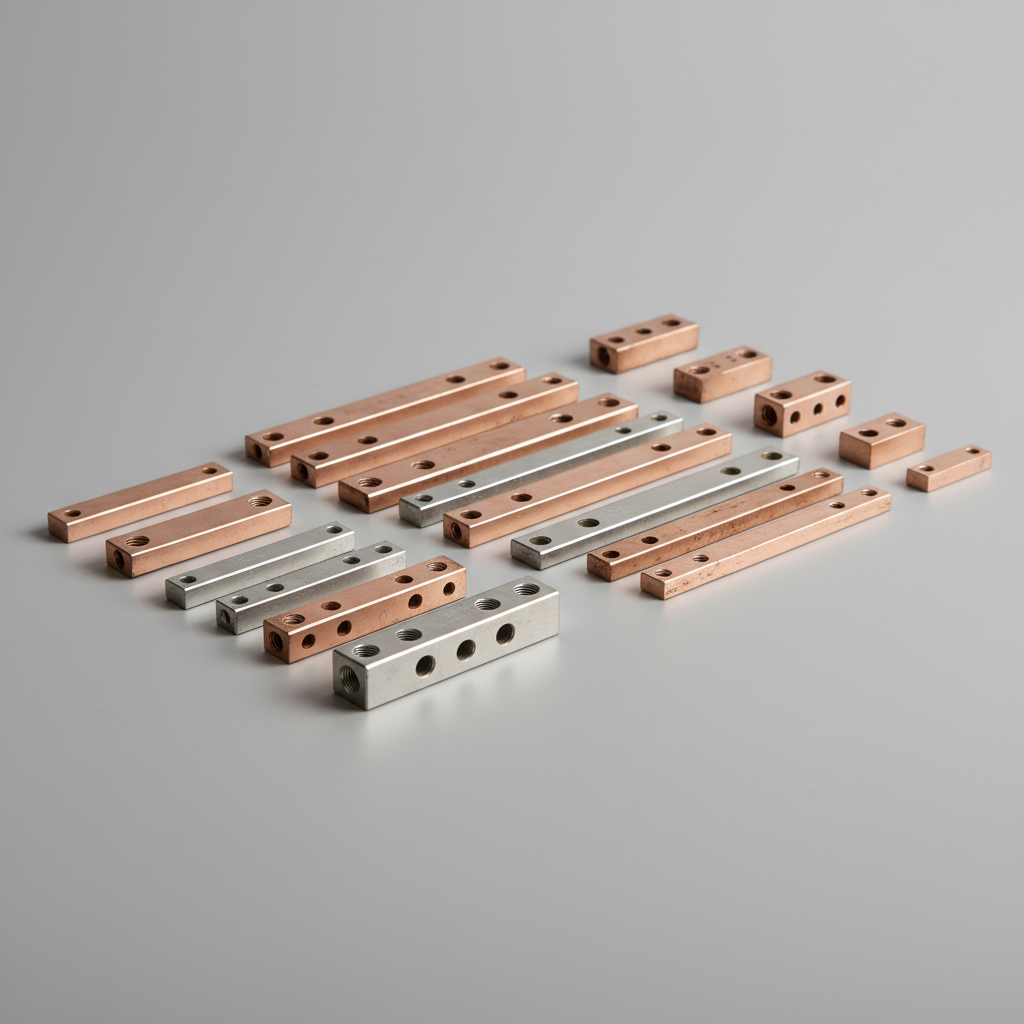

For solar panel battery storage systems, the four connector types that dominate real installations are bolted flat-bar connectors, compression splice connectors, flexible laminated connectors, and through-wall feed-through connectors — each suited to a specific current range, installation geometry, and maintenance access requirement.

Are Bolted Flat-Bar Connectors Still the Best Default Choice?

Bolted flat-bar connectors remain the most field-serviceable option for systems where cell modules may be replaced or reconfigured, but they require precise torque management — under-torqued joints are the leading cause of resistance creep in battery storage installations.

The material choice between bare copper and tin-plated copper is not cosmetic. Tin plating reduces oxidation risk in humid coastal environments — Southeast Asia, Middle Eastern coastal sites, Pacific island microgrids — but adds 8–12% unit cost. For installations in high-humidity zones, that cost difference is recovered in avoided maintenance within the first two years.

On torque: our internal testing on M8 bolted copper connectors at 250A showed that joints torqued to 60% of specification developed 2.3× higher contact resistance after 500 thermal cycles compared to properly torqued joints. The degradation wasn't linear — it accelerated after approximately 200 cycles, suggesting a threshold effect once the contact interface begins to micro-slip. Torque specification is not a suggestion. It is the primary quality control variable in a bolted connector installation.

Bolted flat-bar connectors are the right choice for fixed battery cabinet configurations where maintenance access is reasonable and the system may be reconfigured over its service life.

When Do Flexible Laminated Bus Bar Connectors Make More Sense?

Flexible laminated bus bar connectors — stacked thin copper foil layers bonded at the ends — are the right choice when two connection points cannot be held in perfect rigid alignment, which is common in large-format battery enclosures where thermal expansion causes measurable positional drift between modules.

Laminated connectors absorb ±3–5mm of misalignment without introducing mechanical stress at the joint face. That tolerance sounds small until you consider that a 1.2-meter copper busbar running from 20°C to 60°C expands by approximately 0.9mm — and in a cabinet with multiple busbars constrained by their mounting hardware, that expansion has nowhere to go except into the connector joints.

Rigid connectors in this situation don't fail immediately. They develop micro-cracks at the joint face over hundreds of thermal cycles, and those cracks are invisible to visual inspection. The first indication is usually a thermographic anomaly during a routine infrared scan — if the operator is running one. Laminated connectors eliminate this failure mode by design.

Current range for laminated connectors typically runs 200A to 800A. Above 800A, parallel laminated assemblies are used rather than a single oversized unit. Material choice between pure copper laminate and copper-clad aluminum laminate is relevant for mobile storage units where weight budget matters — copper-clad aluminum reduces mass by approximately 35% at the cost of slightly higher resistivity and more careful termination requirements.

What Is a Through-Wall Bus Bar Connector and When Is It Required?

A through-wall bus bar connector allows a busbar to pass through a cabinet partition or enclosure wall while maintaining IP-rated sealing and electrical isolation — this is specifically required in battery storage systems where DC busbars must cross from the battery compartment into the inverter or BMS compartment.

In outdoor BESS enclosures, IP54 is the minimum sealing requirement for through-wall penetrations; IP65 is standard for coastal or high-humidity sites. The insulation housing material matters at these interfaces: PA66 is adequate for most battery compartment environments, but sections near inverter heat sinks may require PPS-based housings rated for continuous operation above 130°C. ZHERUTONG produces through-wall connectors rated to 1000V DC for utility-scale storage applications, with housing options matched to the thermal zone they occupy.

Here is a direct comparison of the four connector types for reference:

How Do You Size a Bus Bar Connector Correctly for High-Current Applications?

Sizing a bus bar connector is not simply matching its rated amperage to the circuit's nominal current — engineers must account for ambient temperature derating, continuous vs. peak load profiles, and the connector's contribution to total system voltage drop, all of which are frequently underestimated in storage system design.

Why Does Ambient Temperature Change Your Connector Sizing?

A bus bar connector rated at 400A in a 25°C reference environment may only safely carry 310–330A in a battery cabinet where ambient temperature reaches 45°C — this derating is non-negotiable and is routinely ignored in fast-procurement cycles.

The standard derating curve runs approximately 1.5–2% current capacity reduction per degree Celsius above 40°C ambient. Battery cabinet internal temperatures compound this problem: even in climate-controlled installations, internal temperatures routinely run 10–15°C above ambient during peak charge cycles due to the heat generated by the cells themselves.

A practical example: a 500A nominal connector in a Middle Eastern outdoor BESS installation where ambient reaches 55°C should be treated as a 370A connector. That's a 26% capacity reduction. Engineers who don't account for this are not over-specifying — they are specifying to the nameplate and hoping the conditions cooperate. They usually don't.

How Does Contact Resistance Affect Total System Efficiency?

In a battery storage system with 12 bus bar connector joints in the DC path, even a modest 0.1 mΩ contact resistance per joint produces a combined 1.2 mΩ series resistance — at 300A, that translates to 108W of continuous heat generation that degrades both connector lifespan and battery thermal management.

This is the math that rarely gets done at the procurement stage, because procurement is looking at ampere ratings and unit prices. Our laboratory measurement protocol uses four-wire Kelvin resistance measurement on production samples, with an acceptance threshold of ≤0.08 mΩ per joint at rated torque. That threshold exists because we've seen production lots from other suppliers — with identical ampere ratings on the datasheet — measure at 0.22–0.25 mΩ per joint due to inferior contact geometry and inconsistent plating thickness.

Two connectors with the same rated current can differ by 3× in contact resistance. At 300A continuous, that difference is the gap between a system that runs within thermal budget and one that triggers thermal runaway protection at peak load.

What Cross-Section and Hole Pattern Should You Specify?

The cross-sectional area of the connector body must match or exceed the busbar it connects to, and the bolt hole pattern must align with the busbar's drilling template — specifying these two dimensions incorrectly is the most common procurement error we see from first-time OEM customers.

Common cross-sections in storage applications are 50mm², 100mm², and 200mm². Hole patterns follow DIN or IEC standards in most European and Asian projects, but project-specific custom patterns are more common than engineers expect — particularly in containerized BESS where the enclosure manufacturer has set their own busbar drilling template. At ZHERUTONG, custom drilling templates are available at no tooling surcharge for orders above a defined volume threshold, which matters when an OEM client is building a repeating product line rather than a one-off installation.

What Does a Real Project Failure — and Fix — Actually Look Like?

The most instructive way to understand bus bar connector selection is through a system that failed: a utility-scale solar storage project in Southeast Asia where repeated DC bus faults traced back not to the battery cells or the inverter, but to a single connector type specified without thermal derating or vibration tolerance.

A solar-plus-storage developer in the Philippines was operating a 500kW / 1MWh containerized BESS for a remote island microgrid. Within 14 months of commissioning, the system began triggering overcurrent protection faults at irregular intervals. The fault pattern was inconsistent — sometimes at peak discharge, sometimes mid-charge cycle — which initially pointed suspicion toward the BMS firmware or the inverter control logic.

On-site inspection, supported by our field team, identified two of the twelve DC bus bar connector joints in the battery string as sources of abnormal heat. Infrared thermography showed those joints running 28°C above adjacent sections during peak discharge. That's not a marginal anomaly. That's a connector in active thermal runaway.

Root cause diagnosis: the original connectors were standard bolted flat-bar units rated at 400A, specified without tropical humidity derating or vibration consideration. The container was positioned approximately 40 meters from a diesel backup generator that ran six to eight hours daily. Over 14 months, the mechanical vibration — low amplitude, high frequency — caused fretting corrosion to develop at the contact interface. Joint resistance rose from an initial measured value of 0.06 mΩ to 0.31 mΩ — a fivefold increase that the system's protection logic eventually registered as an overcurrent condition.

ZHERUTONG's solution was a direct replacement using tin-plated copper laminated connectors with a dual-bolt clamping pattern and neoprene vibration isolation washers at each mounting point. Contact resistance post-installation measured at 0.055 mΩ — below our laboratory acceptance threshold. We also implemented a re-torque inspection protocol at six-month intervals as a standing maintenance requirement.

The result: zero overcurrent fault events in the 18 months following replacement. System availability improved from 94.2% to 99.1%. The developer subsequently standardized our laminated connector specification across two additional island microgrid projects in the Visayas region. The connector cost difference between the original specification and the replacement was less than 3% of total system component cost. The downtime cost during the 14-month failure period was not recoverable.

What Should Engineers Watch for During Bus Bar Connector Installation?

Installation quality determines whether a correctly specified bus bar connector performs to its rated parameters — three variables that are entirely within the installer's control account for the majority of premature connector failures: contact surface preparation, torque sequence, and post-installation verification.

Contact surface preparation is where most installation errors begin. On aluminum busbars, oxide removal requires a wire brush and joint compound applied within 30 minutes of assembly. Delay allows re-oxidation, and re-oxidized aluminum surfaces create an insulating layer that no amount of bolt torque can fully overcome. On copper surfaces in coastal environments, a light abrasion followed by immediate assembly is sufficient — but "immediate" means within the hour, not the next morning.

Torque sequence for multi-bolt connectors follows a star pattern with two-pass tightening: 50% of specified torque on the first pass, full torque on the second. Single-pass tightening creates uneven contact pressure distribution across the connector face, with the bolt nearest to the applied torque carrying disproportionate load. This is not a theoretical concern — it's visible in the contact resistance distribution when you measure individual joint quadrants with a Kelvin probe.

Post-installation verification should include a baseline infrared scan at 70–80% of rated current within the first 72 hours of operation. Any joint running more than 10°C above the busbar body temperature at that load level should be re-inspected before full load commissioning. This step is almost never written into installation contracts, and it is the single most effective quality gate available to the commissioning team.

Re-torque intervals matter more than most maintenance schedules acknowledge. Copper connectors in thermally cycled environments — daily charge and discharge — should be re-inspected at six months. Aluminum connectors should be re-inspected at three months due to creep behavior under sustained clamping load. One common field error worth flagging: applying anti-seize compound to bolt threads without adjusting the torque specification downward. Anti-seize reduces friction, which means a given torque value produces higher actual clamping force than the connector body was designed for. This leads to over-stressed connector bodies that develop hairline cracks — invisible externally, but detectable by a sudden increase in contact resistance at the next inspection cycle.

---

Have More Questions About Bus Bar Connectors?

These are the questions our engineering team receives most frequently from project designers and procurement specialists evaluating bus bar connectors for the first time.

Q: Can I use aluminum bus bar connectors in a lithium battery storage system?

Yes, but only with connectors specifically rated for aluminum-to-aluminum or aluminum-to-copper transitions, using bi-metal interface material and joint compound to prevent galvanic corrosion and oxide layer resistance buildup.

Q: What is the maximum DC voltage rating I should look for in a solar storage application?

Most utility-scale BESS systems operate at 1000V DC or 1500V DC string voltages. Specify connectors with a DC voltage rating that matches or exceeds your system voltage — DC arc interruption requirements are more demanding than AC equivalents at the same voltage level.

Q: How do I know if my bus bar connector is undersized without measuring contact resistance?

Localized heat at the connector joint visible on infrared thermography, discoloration of the connector body, or intermittent protection trips at high load are the three early warning signs before resistance measurement is possible.

Q: Does connector plating material affect performance in outdoor BESS enclosures?

Tin plating outperforms bare copper in high-humidity and salt-air environments by resisting surface oxidation. Silver plating offers the lowest contact resistance but is cost-justified only in connectors operating above 600A continuously.

Q: Can ZHERUTONG produce custom bus bar connectors for non-standard busbar dimensions?

Yes — we regularly manufacture connectors to customer-supplied drawings for projects with non-DIN hole patterns, non-standard cross-sections, or specific insulation housing requirements.

---
